The I Beam, a vital structural steel component, is characterized by its iconic I-shaped cross-section, engineered to deliver exceptional load-bearing capacity and stability. Renowned for its superior strength-to-weight ratio, it is ideal for heavy-duty applications in skyscrapers, bridges, industrial complexes, and infrastructure projects. Crafted from high-grade steel with precision rolling technology, our I Beams ensure consistent quality, durability, and compliance with international standards like ASTM, EN, and GB.

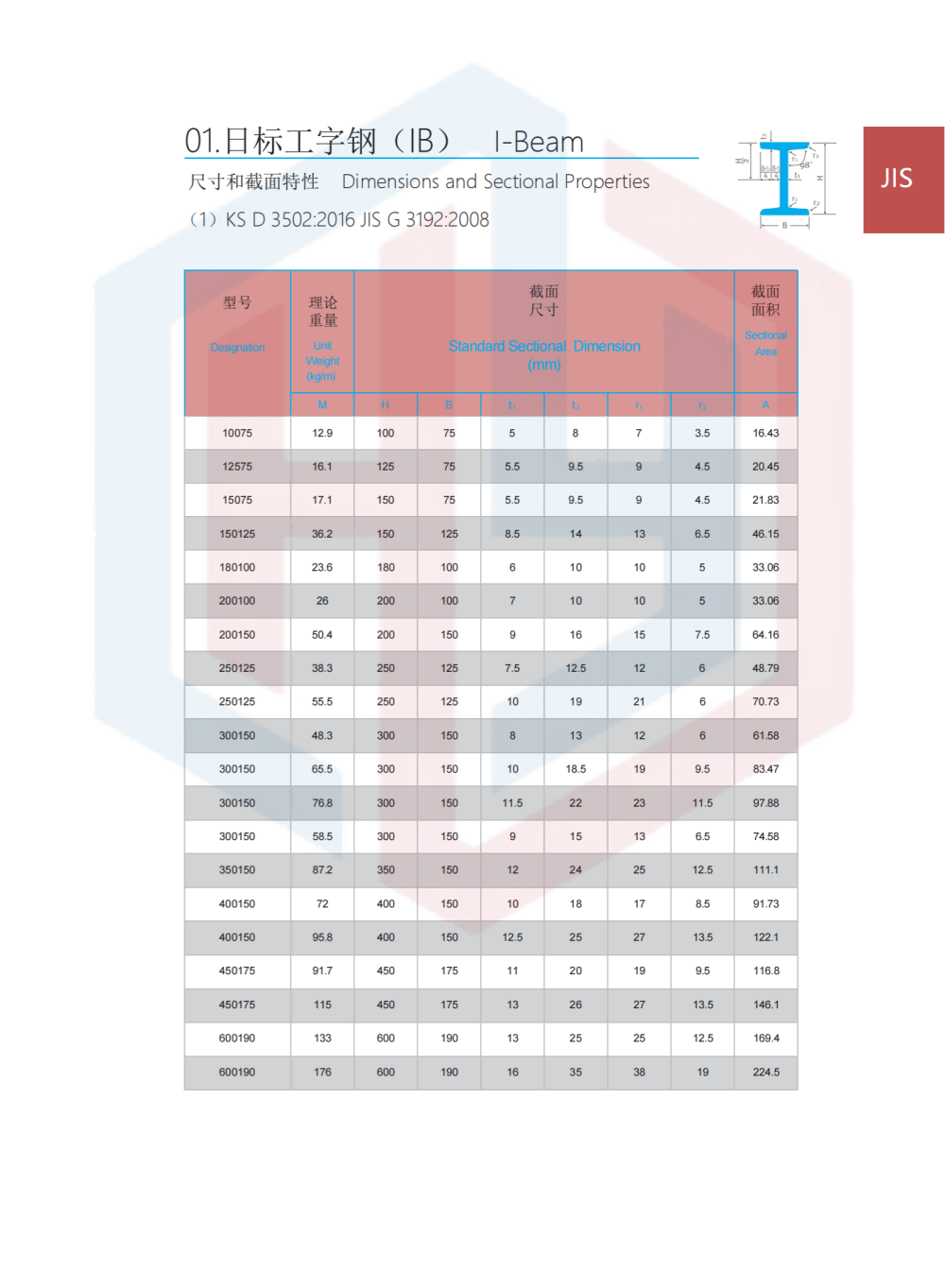

Example Size
（Click on the image to enlarge）
Our Advantage

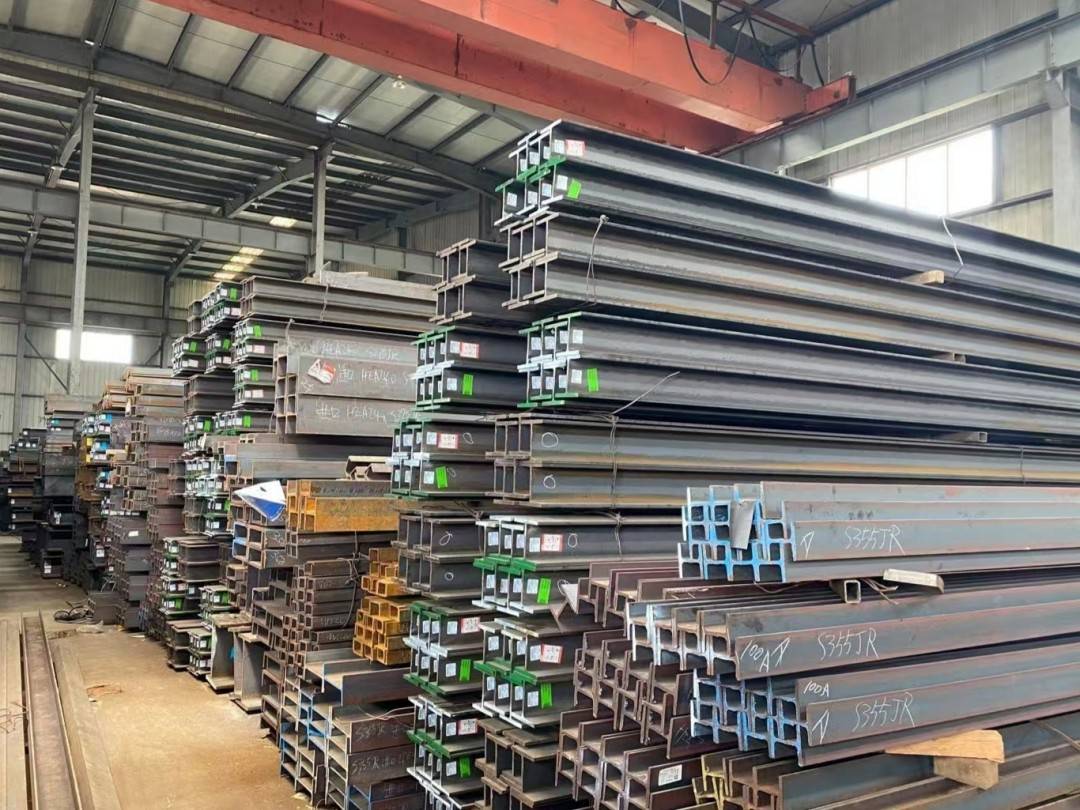

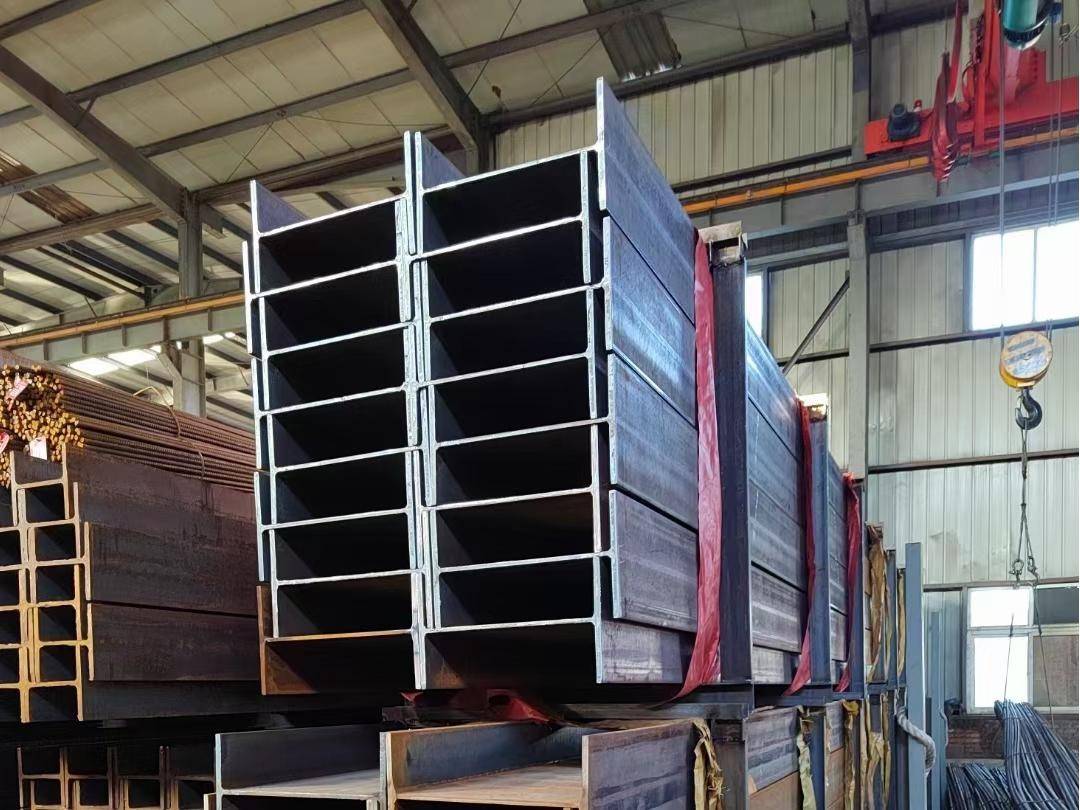

Our I-Beams are bundled in 50-100 pieces per pack with a triple-layer protection system: inner anti-scratch PE film, reinforced steel strapping, and outer UV-resistant waterproof coating. Each bundle includes a traceable QR code (detailing specs, batch, and QC data), achieving a 99.6% damage-free acceptance rate even in transcontinental logistics.
With a 5-ton MOQ (approx. 15-20 standard I-Beams), we empower SMEs and trial orders without inventory burdens. Our free sample program (1-2 pieces, ≤3m length) ships within 72 hours, enabling swift material validation and risk-free decision-making.
After a 30% deposit, we activate parallel production workflows—material procurement and mould preparation begin simultaneously. With 6 automated rolling lines, we guarantee production within 30 days and shipment within 40 days, supported by real-time progress tracking and SMS alerts for critical milestones.
From precision processing (laser cutting ±0.2mm, custom beveling) to global logistics (in-house customs clearance + priority shipping slots) and certified testing (SGS tensile tests, third-party dimensional reports), our integrated services save clients 120+ labour hours per order, freeing resources for strategic priorities.
WORKABILITY:
Welding = Excellent
Machining / Grinding = Good
Bending / Forming = Fair
Wear Resistance = Fair
Corrosion Resistance = Poor
AVAILABLE LENGTHS:
5ft, 10ft, 20ft, 25ft, or Cut to Size
HOW TO MEASURE:
Height (A) X Web (B) X Flange Width (C)
MECHANICAL PROPERTIES:
Tensile Strength = 65,000 psi
Yield Point = 50,000 – 65,000 psi
Elongation = 21% in 2″
Shearing Strength = 11,200 psi
Brinell Hardness = 135
